OCTG Supplier
Oil country tubular goods (OCTG) is a type of seamless rolled product consisting of drill pipe, casing and tubing. Puwo provides a variety of OCTG as well as casing, tubing, drill pipe, oilfield pipe, drill collar, heavy weight drill pipe, slotted pipe, line pipe, coupling and pup joint, etc.
Casing pipe: Casing pipe lines the borehole. It is subject to axial tension by its dead weight, internal pressure by fluid purging, and external pressure by surrounding rock formations.
Tubing: Tubing is pipe through which the oil or gas is transported from the wellbore.
Drill pipe: Drill pipe is heavy seamless tube that rotates the drill bit and circulates drilling fluid.

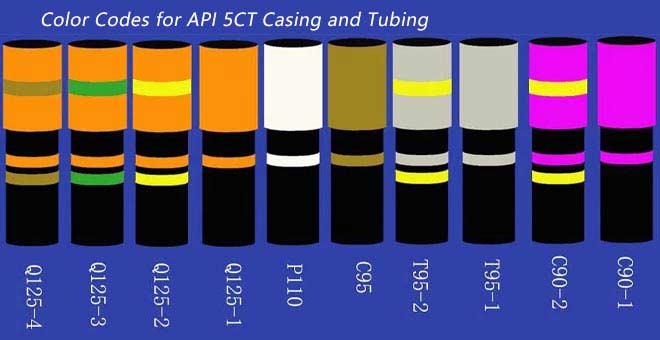

According to the API 5 CT, pipe casing steel grade will be divided into H 40,J 55,K 55, C 75,N 80, L 80,C 90, T 95,P 110、Q125. PUWO specializes in oil pipeline,octg casing and piping such as API 5CT grade H-40,API 5CT Gr J-55,API 5CT grade K-55, API 5CT grade C-75,API 5CT grade N-80, API 5CT grade L-80,API 5CT grade C-90, API 5CT grade T-95,API 5CT grade P-110、API 5CT grade-Q125.we also can provide customers with products based on their specified technical requirements.

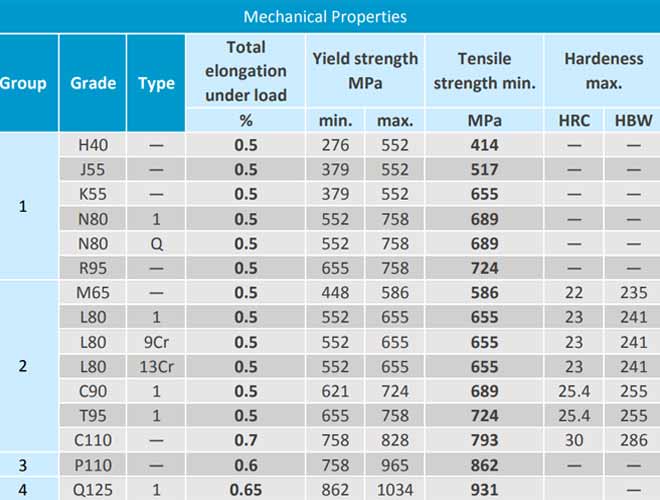

Grades of Casing:

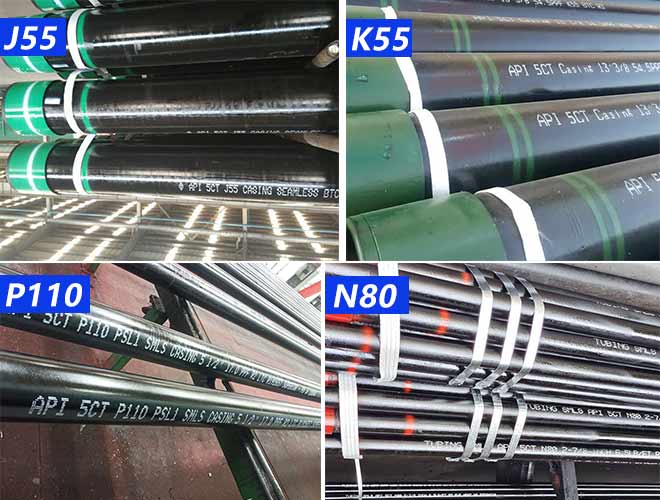

API 5CT J55/K55/N80/L80-1/L80-9Cr/L80-13Cr/P110/Q125/K55 D10/L80 D10, ETC.
Sizes of Casing and tubing:
Diameter: from 4 1/2 inch to 20 inch(114.3mm - 508mm); Nominal Weight: from 9.5 lb/ft to 169 lb/ft from 9.5 ppf to 169 ppf; Lenght: R1, R2, R3.
Types of Casing:

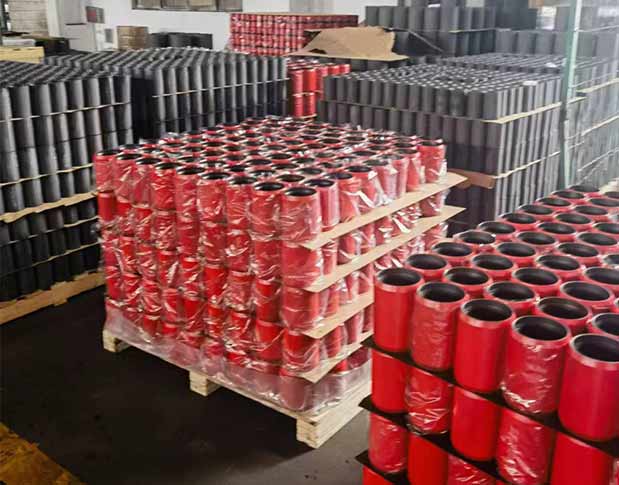

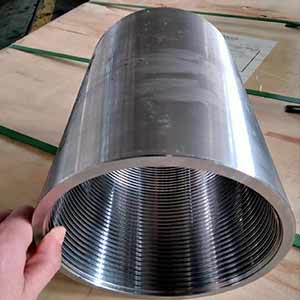

Seamless casing, ERW casing, Casing nipple, Casing coupling.
Coating:
3PP Coating/3PE Coating/FBE Coating/Epoxy Coating/Special Painting.
Connection::
BTC, STC, LTC.
Puwo will provide you with a price 5% lower than the market, contact us for a free quote.
Tel/whatsapp/wechat: +86 15003822347 (24 hours online)
Send email: sale@puwosmls.com
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.
| Grades | API 5CT J55/K55/N80/L80-1/L80-9Cr/L80-13Cr/P110/Q125, etc. |
| Sizes | Diameter: from 1.050 inch to 4-1/2 inch(26.67mm - 114.3mm); Lenght: R1, R2, R3. |

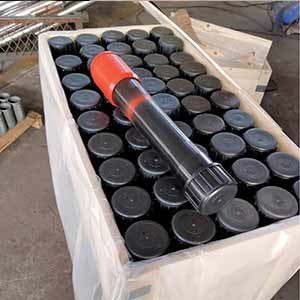

| Types | Seamless tubing, ERW tubing, tubing nipple, tubing coupling,tubing pup joint. |
| Coating | 3PP Coating/3PE Coating/FBE Coating/Epoxy Coating/Special Painting. |
| Connection | NUE, EUE. |

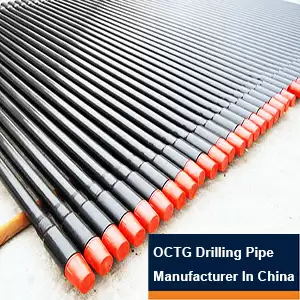

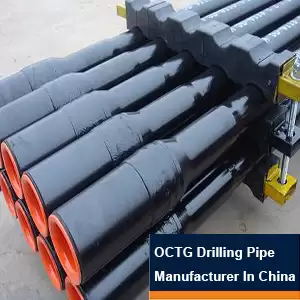

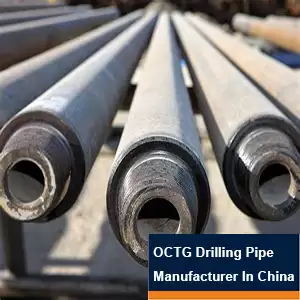

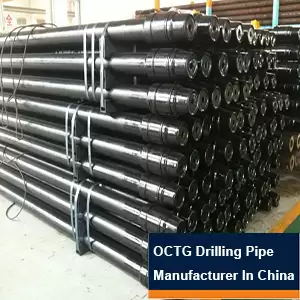

Drill pipe is heavy seamless tube that rotates the drill bit and circulates drilling fluid. Pipe segments 30 ft (9m) long are coupled with tool joints. Drill pipe is simultaneously subjected to high torque by drilling, axial tension by its dead weight, and internal pressure by purging of drilling fluid. Additionally, alternating bending loads due to non-vertical or deflected drilling may be superimposed on these basic loading patterns.
Puwo provides a variety of OCTG as well as casing, tubing, drill pipe, drill collar, heavy weight drill pipe, slotted pipe, line pipe, coupling and pup joint, etc.
