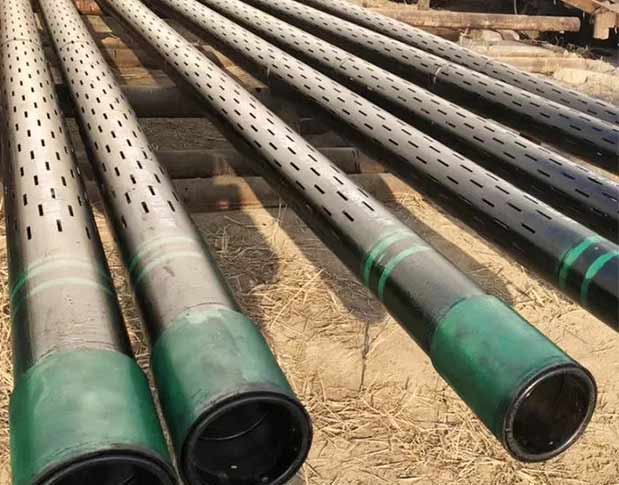

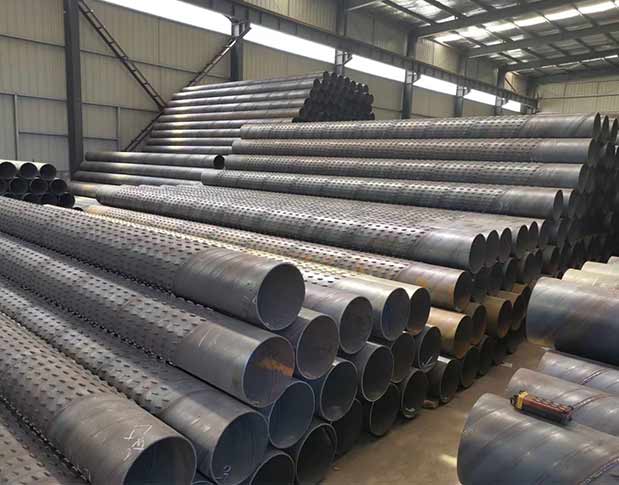

Slotted Casing Pipe

Slotted casing provided by the manufacturer

Base pipe: API Casing or Tubing,J55, N80, P110, etc;

Standard: API 5CT, API 5L, ASTM, JIS etc;

Grade: H40, J55, K55, N80, L80, P110, etc;

Standard: API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95;

Size: OD: 2 3/8″ – 20″ (60.3mm – 508mm),WT: Less than 16mm Length: ≤15m;

Thread: Bevel End, NUE, EUE, BTC, STC, LTC, VAM, NEW VAM etc;

Sloth length: As Per Customer’s Requirement, Sloth Width: 0.15 – 10mm (±0.03mm);

Slots Shape: Straight Slots, Trapezoid Slots, Holes or Other Shapes;

Types of Slots: Straight in Line Pattern, Staggered Pattern, Spiral Pattern etc.;

Blind Space: As Per Customer’s Requirement;
