Galvanized Pipe for Sale

Galvanized Pipe for Sale

1. Competitive price and quality from our own factory;

2. Approved by ISO9001, CE, SGS every year;

3. Best service with 24 hour`s reply;

4. Flexible payment with T/T,L/C , paypal, kunlun bank, etc;

5. Quick delivery and standard exporting package;

6. OEM/ODM;

Email: sale@puwosmls.com

Product Introduction

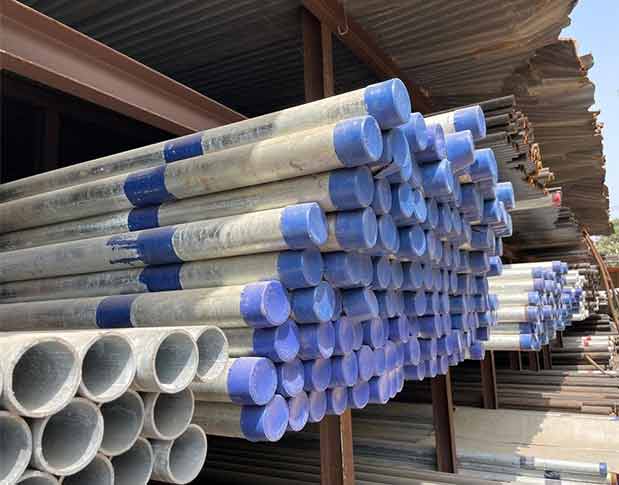

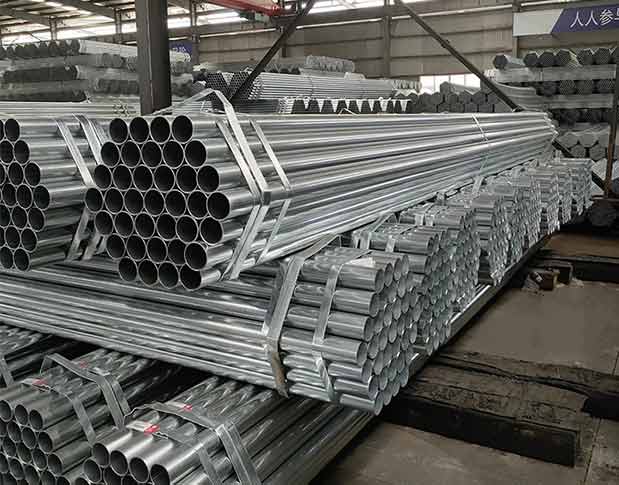

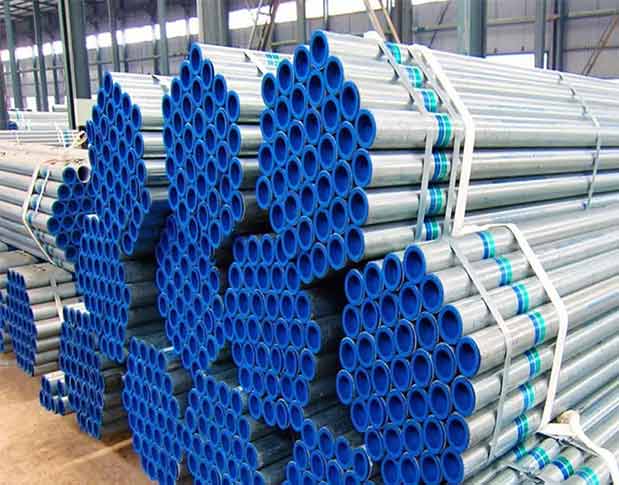

Galvanized Steel pipes are steel pipes with Zinc coating on the surface and inside. According to the application of the final the application environment, there are hot dipped galvanized pipe and pre glavanized pipes. We can supply galvanized steel pipes, pre-galvanized steel tube, hot-dip galvanized steel pipes.

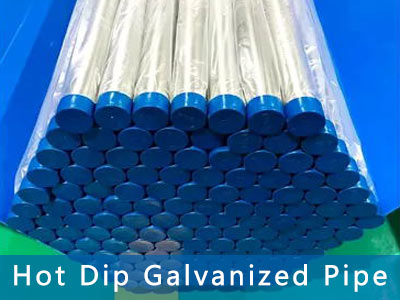

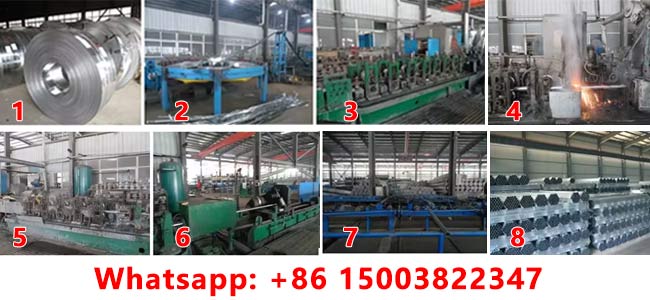

Hot dip galvanized pipe is the tube after manufacturing immersed in the plating solution. The advantage is that it covers the entire part, including edges, welds, etc., thus providing a full range of corrosion protection. Pre-galvanized pipe is made by galvanized sheet strip. After the sheet is galvanized then into the rolling mill, it is cut into a certain size and rolled back. The minimum thickness of the pipe is 12 m.



Specification of Galvanized Steel Pipes:

Product Name Galvanized Steel Round Pipe(Hot Dipped or Pre-Galvanized)
Material Q195 Q235 Q345 SS400 SJ235 SJ275
Wall Thickness 0.6mm-30mm or as per request
Outer Diameter 1-12m or as required.
Zinc Coating 30g-275g
Technique ERW(GALVANIZED)
Packing Bundle, with Standard Sea-Worthy Packing, as your required.
Pipe Ends Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Product Application Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe
Special Pipe API Pipe, EMT Pipe, Thick Wall Pipe
Processing Service Welding, Punching, Cutting, Bending, Decoiling



If you would like to inquire more about Galvanized Steel Pipes, please feel free to contact us. (email: sale@puwosmls.com / Whatsapp:+86 15003822347).



Galvanized Round Steel Pipe

Stabdaed:API 5L,API 5CT,ASTM A53,ASTM A500,GB9711.1Application:To be used for conveying gas,water,and petroleum for oil and natural gasindustries and use for the structural steel pipes purposeMain Steel Tube Grade:GR.A,GR.B,GR.C,Q195,Q235B,Q345B and so on.
INCH OD(MM) Strandard Wall Thickness
SCH 10WT (mm) SCH 20WT (mm) SCH 40WT (mm) SCH 60WT (mm) SCH 80WT(mm) SCH 100WT(mm) SCH 160WT(mm) XXS(mm)
1/4” 13.7 2.24 3.02
3/8” 17.1 2.31 3.2
1/2” 21.3 2.11 2.77 3.73 4.78 7.47
3/4" 26.7 2.11 2.87 3.91 5.56 7.82
1" 33.4 2.77 3.38 4.55 6.35 9.09
1-1/4" 42.2 2.77 3.56 4.85 6.35 9.7
1-1/2" 48.3 2.77 3.68 5.08 7.14 10.15
2" 60.3 2.77 3.91 5.54 8.74 11.07
2-1/2" 73 3.05 5.16 7.01 9.53 14.02
3" 88.9 3.05 5.49 7.62 11.13 15.24
3-1/2" 101.6 3.05 5.74 8.08
4" 114.3 3.05 4.5 6.02 8.56 13.49 17.12
5" 141.3 3.4 6.55 9.53 15.88 19.05
6" 168.3 3.4 7.11 10.97 18.26 21.95
8" 219.1 3.76 6.35 8.18 10.31 12.7 15.09 23.01 22.23
10" 273 4.19 6.35 9.27 12.7 15.09 18.26 28.58 25.4
12" 323.8 4.57 6.35 10.31 14.27 17.48 21.44 33.32 25.4
14" 355 6.35 7.92 11.13 15.09 19.05 23.83 36.71
16" 406 6.35 7.92 12.7 16.66 21.44 26.19 40.49
18" 457 6.35 7.92 14.27 19.05 23.83 29.36 46.24
20" 508 6.35 9.53 15.09 20.62 26.19 32.54 50.01
22" 559 6.35 9.53 22.23 28.58 34.93 54.98
24" 610 6.35 9.53 17.48 24.61 30.96 38.89 59.54
26" 660 7.92 12.7
28" 711 7.92 12.7
30" 762 7.92 12.7
32" 813 7.92 12.7 17.48
34" 863 7.92 12.7 17.48
36" 914 7.92 12.7 19.05
38" 965
40" 1016
42" 1066
44" 1117
46" 1168
48" 1219

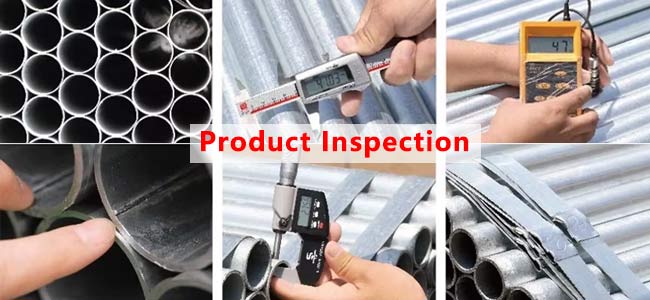

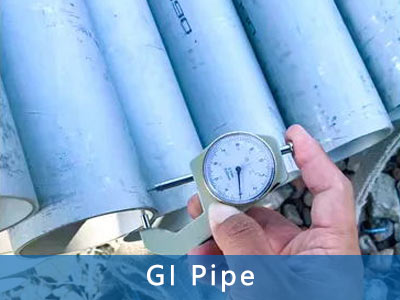

Quality Inspection:

We are a professional galvanized steel pipe manufacturer. We provide galvanized steel pipes and pipe fittings in various specifications. Our steel pipes will undergo strict quality inspection to ensure that the products are delivered to customers perfectly.



Performance for Galvanized Pipes:

1:Outstanding rust avoidance efficiency. Galvanized pipes use rust evidence products in the manufacturing procedure, so their deterioration resistance is far better than regular steel pipelines;

2:Solid effect resistance. Galvanized pipelines are much less vulnerable to deformation or damages during effect;

3:Great corrosion resistance. The production process of galvanized steel pipes adopts hot-dip galvanizing, developing a thick protective layer to resist the disintegration of different media;

4:Low handling costs. The price of hot-dip galvanizing for corrosion prevention is lower than that of various other paint finishings;

5:Strong deterioration resistance. The zinc layer is integrated with the steel pipeline substratum to develop a corrosion-resistant and tightly structured zinc iron alloy layer.

The above benefits make galvanized pipelines attract attention among lots of building products and are extensively used in every day life and industrial areas.



Why Buy Galvanized Pipes from Puwo?

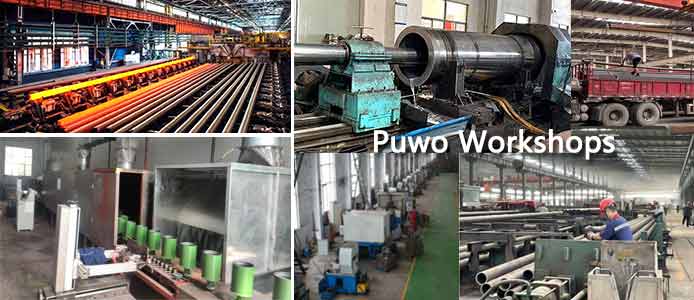

1. Puwo is a trustworthy steel pipe manufacturer and exporter. Puwo has its own factory and can provide customers with high-quality short sections at low prices.

2. Puwo is a group enterprise with three steel pipe and accessories production companies. We provide one-stop shopping for our customers.

3. With a warehouse of more than 5,000 square meters, conventional products are in stock and can be shipped quickly.

4. We have rich experience in steel pipe export. Currently, more than 50,000 users around the world purchase steel pipes or accessories from Puwo many times a year.



Get Free Quote Now
